Auto body repair & Spray painting Paper 3 May/June 2015

Question 1

  The following materials were supplied:

  1. mild steel sheet metal 300 mm x 220 mm x 18 SWG for part A;
  2. mild steel sheet metal 300 mm x 240 mm x 18 SWG for part B;
  3. mild steel angle bracket 200 mm x 2.5 mm  for part C;
  4. one tie-on label.
  5. rivetin pins (10 pins per candidate)
  6. riveting gun
  7. drill bits

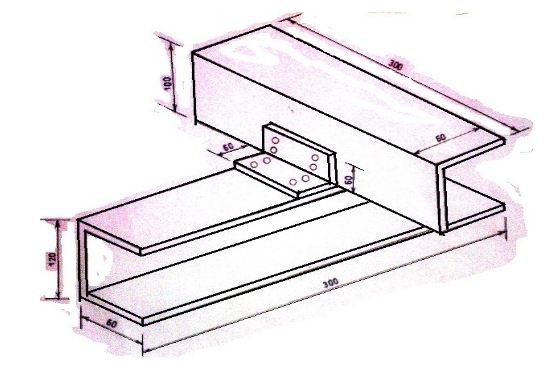

The diagram below shows an assembly drawing of a two-channel section, joined with an angle iron. Using the materials supplied, produce the component.



Observation

Candidates were required to produce the component shown. Some candidates who were able to interpret the drawings performed very well.
