Building Construction Paper 1,Nov/Dec. 2012
Questions:   1 2 3 4   Main
General Comments

Question 4

To a scale of 1:20, draw the doors’ and windows’ schedules for the building.


Most candidates were able to:

            -           draw to the required scale;
            -           state the doors and windows sizes correctly;
            -           describe each door and window correctly.

            However, some failed to:

            -           prepare the schedules in accordance with the conventional format;
            -           dimension the (doors and windows) diagrams;
            -           indicate the quantity of each door and window.

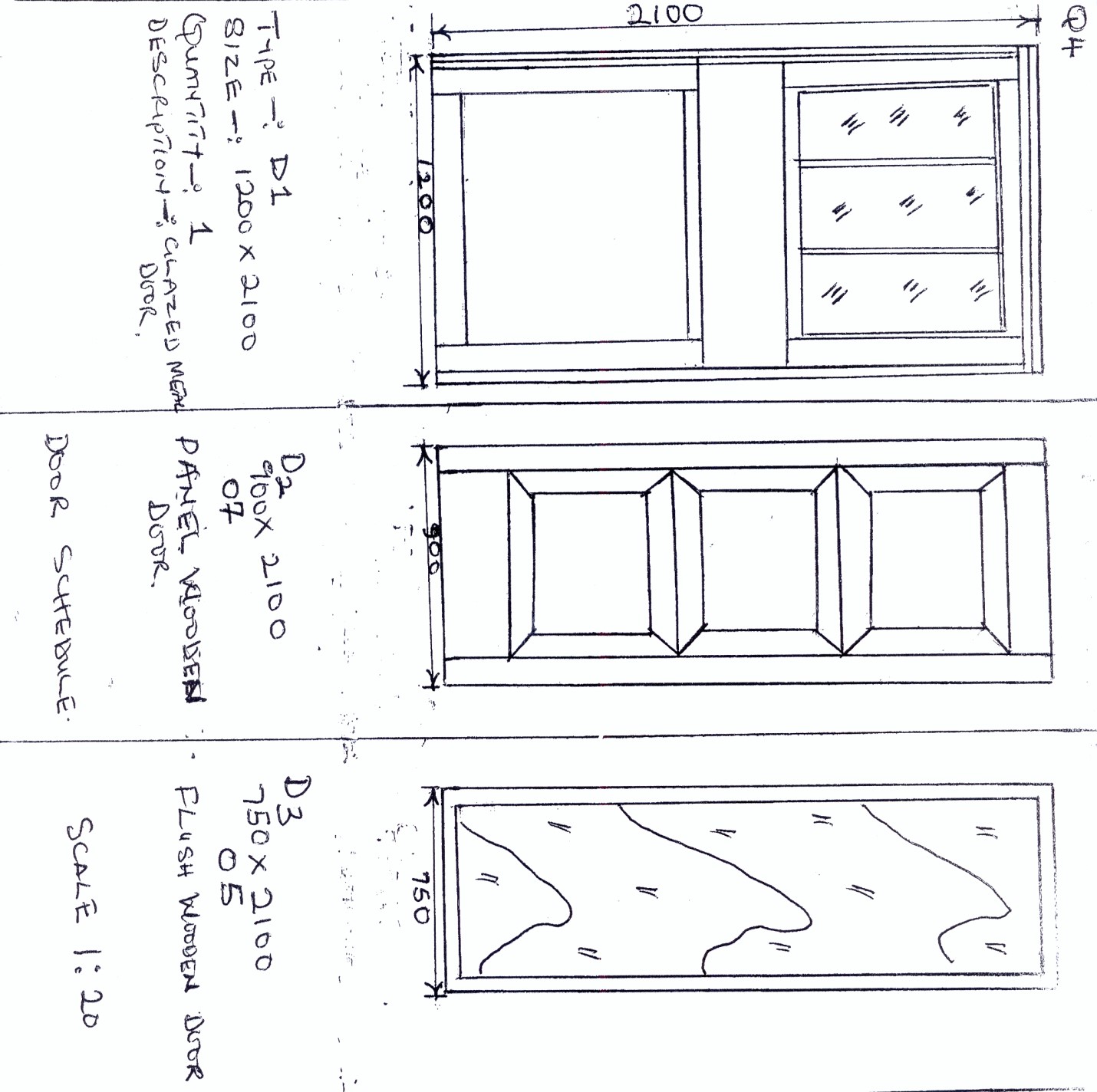

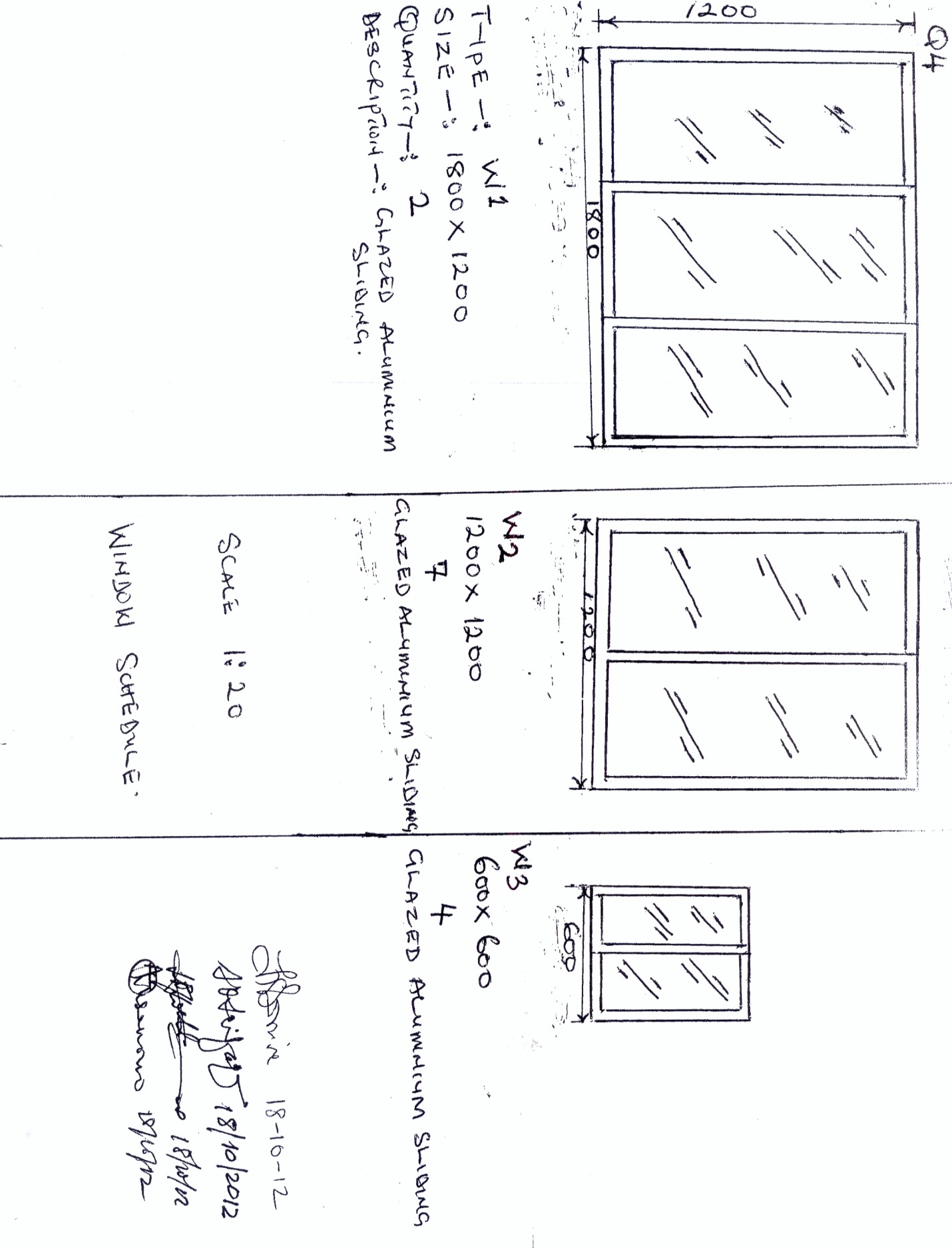

            The expected response to question 4 is as given below:
