The expected answers were:
(a) (i) Reactance
This is the opposition offered by a pure inductor or pure capacitor to the passage of electric/alternating current.
(ii) Impedance
This is the total opposition offered by a circuit containing resistances and reactances to the passage of alternating/electric current.

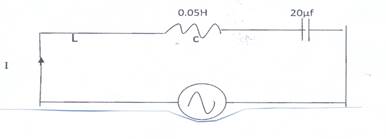

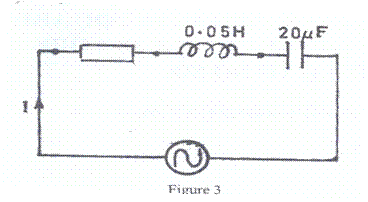

(b)
- Resonance frequency
fr=
(ii) Inductive reactance
XL = 2fL
XL = 2 x159 x 0.05
XL = 50Ω
(iii) Capacitive reactance
XC =
XC =
XC = 50 Ω
The question was on Circuit Analysis. The question was very popular with the candidates. Most candidates that attempted this question did well in the part (b), while quite a few could not define reactance and impedance, mistaking reactance for resistance. The performance was fair.
