Question 9
  1.  Define a bistable multivibrator.
  1.  State two applications of a bistable multivibrator.

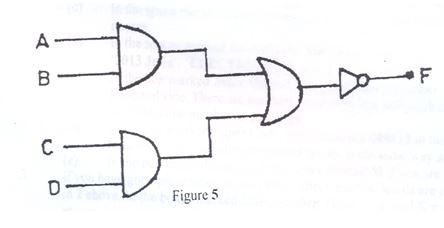

  1.  Figure 5 is a logic circuit.



         Using Figure 5, complete Table 1.


    A

    B

    C

    D

    F

    1

    0

    0

    1



    1

    0

    1

    1



_____________________________________________________________________________________________________
OBSERVATION

The expected answers were:


  1. A bistable multivibrator is a transistor oscillator circuit that has two stable output states.
  2. Application

              Frequency divider
               Counter
               Storage device in computer memory, etc.

  1. Truth Table

    A

    B

    C

    D

    F

    1

    0

    0

    1

    1

    1

    0

    1

    1

    0





    The question was on Logic gates. The question was popular with the candidates. The performance was fairly good.
