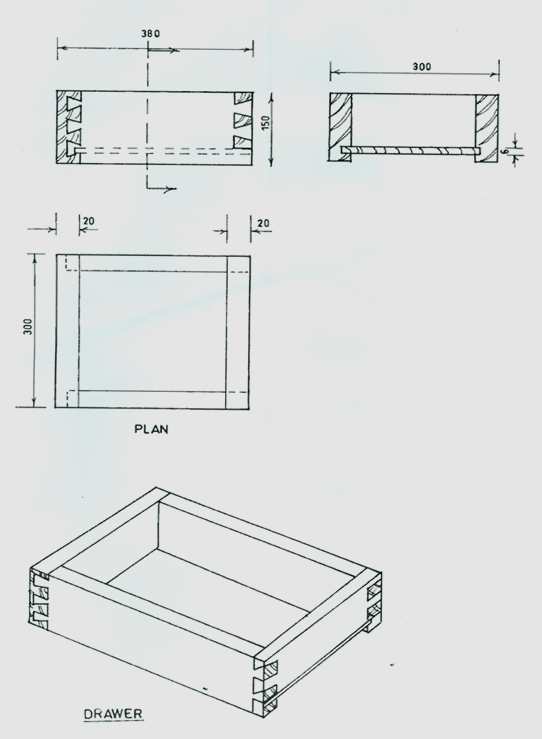

| 1. Make the test piece shown below, using the materials which has been prepared to the following finished sizes (all dimensions are in millimeters):
S/N. QUANTITY DESCRIPTION SIZES
1 2 Sides 370 x 150 x 20;
2 1 Front 300 x 150 x 20;
3 1 Back 300 x 138 x 20;
4 1 Panel (plywood) 400 x 300 x 6.
2. You may use any of the ordinary hand tools but the use of glue, glass-paper, files, rasps and scrapers is not allowed.
3. Dimensions which are omitted from the drawing are left to your own discretion.
4. If you make any mistake, work as near to the drawing as possible.
Additional materials will not be supplied.
5. Print your name and index number clearly on each piece of wood and assemble your work before handing it over to the supervisor.
This was the only question candidates were required to produce the component shown above. Most candidates could not finish the task within the given duration.
|
