Question 4









_____________________________________________________________________________________________________
OBSERVATION

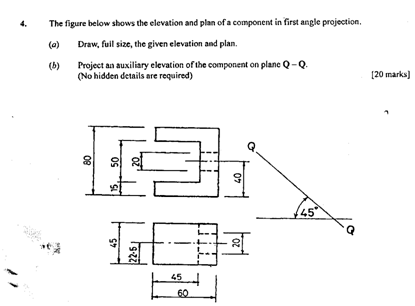

Question 4a is on Candidates were expected to :

  • draw the given elevation;
  • draw the plan;
  •  project from elevation to the plan;

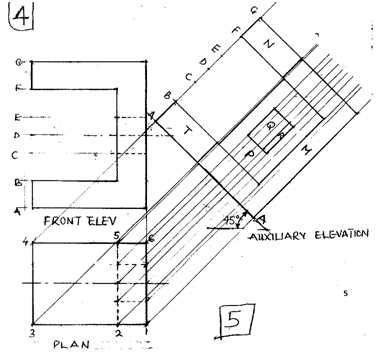

  • Project the auxiliary lines from the plan at 45º as shown below

sketch
