Technical Drawing Paper 2, May/June. 2012
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 1

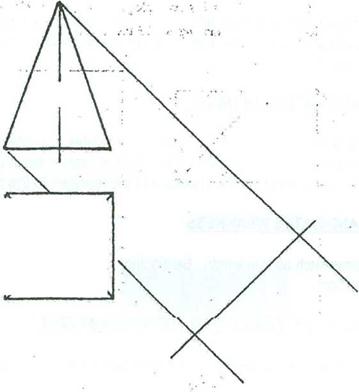

Complete the construction of the auxiliary plan of a square based pyramid started in the figure below.


Observation

  1. draw the diagonals to the vertex
  2. project correctly.

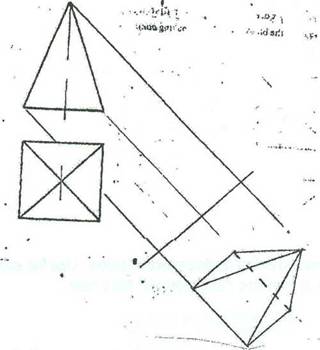

The solution is below
