Technical Drawing Paper 2, Nov/Dec. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 10

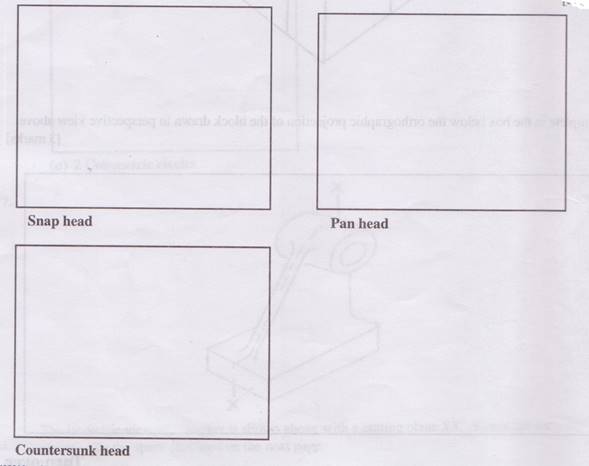

  1. Sketch the following rivets in the spaces provided below:
  1. snap head;
  2. countersunk head;
  3. pan head.





_____________________________________________________________________________________________________
Observation

                        Candidates were expected to:

  1. sketch the snap head;
  2. sketch the countersunk head;
  3. draw the pan head.

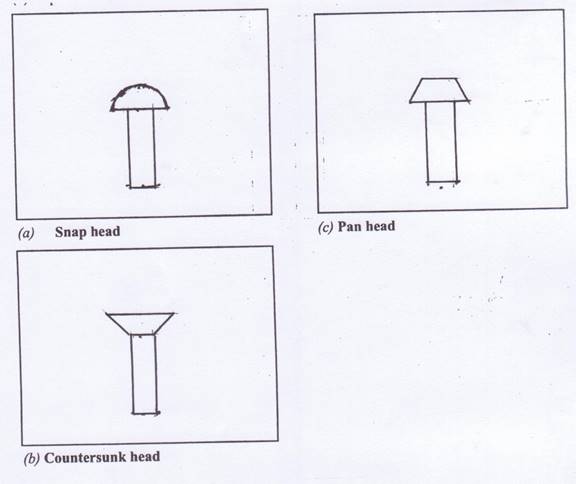

The solution is shown below.
