Building Construction Paper 2,Nov/Dec. 2011
Questions:   1 2 3 4 5   Main
General Comments
Weakness/Remedies
Strength




Question 4

(a)        Define bonding in relation to wall construction.

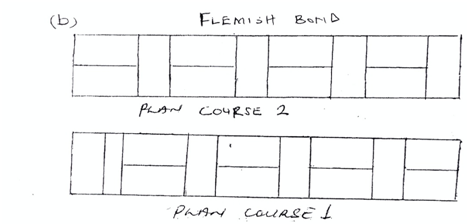

(b)        Sketch the alternate plans of a one-brick thick wall, six-brick long in Flemish bond.

(c)        State two functional requirements of a roof.

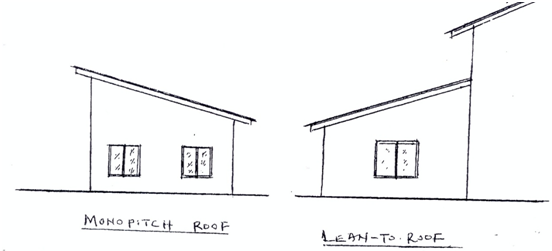

(d)        Sketch to illustrate each of the following types of roof construction:

            (i)         lean-to;
            (ii)        mono-pitch.



_____________________________________________________________________________________________________
OBSERVATION

 Most candidates were able to:

  1. define bonding;
  2. state the functional requirements of a roof .



However, they were unable to sketch the:

  1. alternate plans of a one-brick thick wall, six-brick long in Flemish bond;
  2. given types of roof construction.



The expected response to question 4 is as given below:

4(a)      Bonding refers to the interlocking arrangement of bricks or blocks in a wall by setting – out and maintaining the correct lap.

OR

  1. Arrangement of blocks or bricks in a wall in a definite pattern to avoid straight joints.



(b)



4(c)      Functional Requirement of a Roof

1.         To exclude rain from a building
2.         To resist wind pressure
3.         Provides barrier to sound transmission
4.         Provides thermal insulation to the building
5.         It gives lateral support to walls of a building

    (d)
