Question 1
|
Test A
-
The following materials were supplied:
(a) one piece mild steel plate, 72 mm x 57 mm x 3 mm 2 OFF (for parts A and B);
(b) one cotton bag 100 mm x 80 mm to enclose the finished work;
(c) two tie-on labels.
-

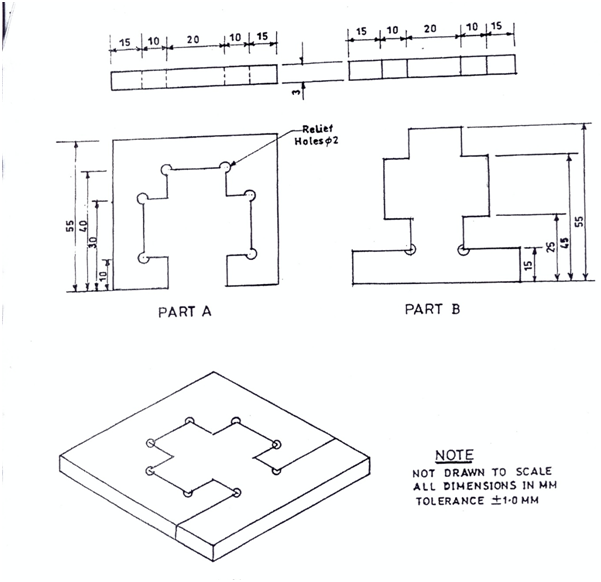

The diagram below shows detailed views of each part of a fitting exercise and the assembly. Using the materials supplied, prepare the parts and assemble the pieces.
ASSEMBLY
|
_____________________________________________________________________________________________________ |
|
Over 90 % of the candidates attempted this fitting exercise with good performance.
|
|
|
|
