Metal Works Paper 1, Nov/Dec. 2012
Questions: 1 2 Main
General Comments
Strength
Weakness/Remedies

Question 1

TEST A

  1.  The following materials were supplied:

  1. one flat mild steel plate, 82 mm x 67 mm x 3 mm (2 OFF) for parts A and B;
  2. one cotton bag, 120 mm x 100 mm to enclose the finished work;
  3. two tie-on labels.

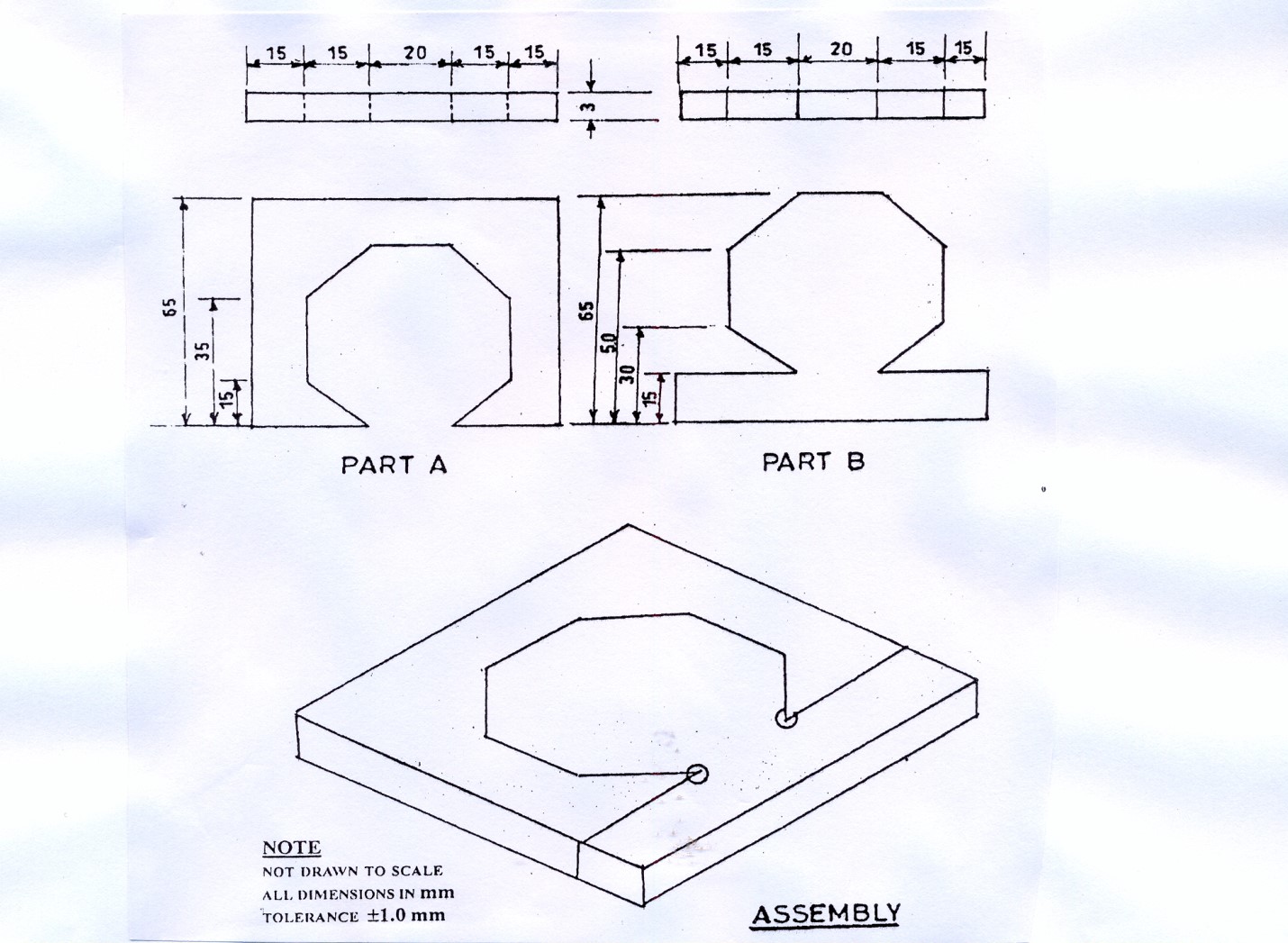

2. The diagram below shows the assembly and detailed views of each part of a fitting exercise.
Using the materials supplied, prepare the parts and assemble the pieces.

_____________________________________________________________________________________________________
OBSERVATION

About  98% of the candidates attempted this questions with good performance.
In this exercise candidates were required to mark out, cut and file to size as well as to assemble the components.  Most of the candidates performed the tasks properly.
