Metal Works Paper 3, Nov/Dec. 2014
Questions: 1 2 3 4 5 Main
General Comments
Strength
Weakness/Remedies









Test A




  1. The following materials were supplied:
  1. one flat mild steel plate, 170 mm x 45 mm x 3 mm for parts A and B;
  2. one 3 mm free cutting mild steel plate 25 mm x 25 mm;
  3. set screw, M6, (2 OFF);
  4. one cotton bag, 70 mm x 120 mm;
  5. two tie-on labels.

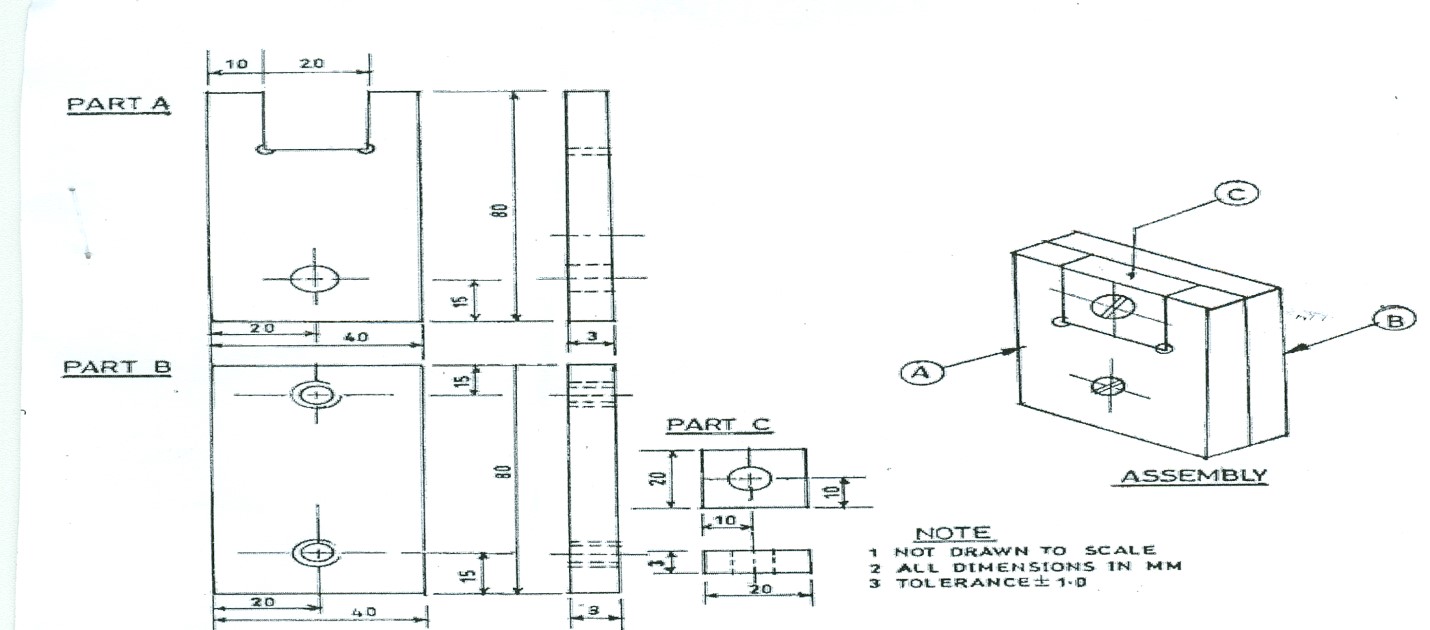

  6.  The diagram below shows the assembly and detailed views of each part of a fitting exercise.



Using the materials supplied, prepare the parts and assemble the pieces.

_____________________________________________________________________________________________________
OBSERVATION

Most of the candidates who attempted this question did well in cutting and drilling but many of the jobs were not completed.  Many also had poor filing and finishing
