Technical Drawing Paper 1,Nov/Dec. 2010
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies









Question 1

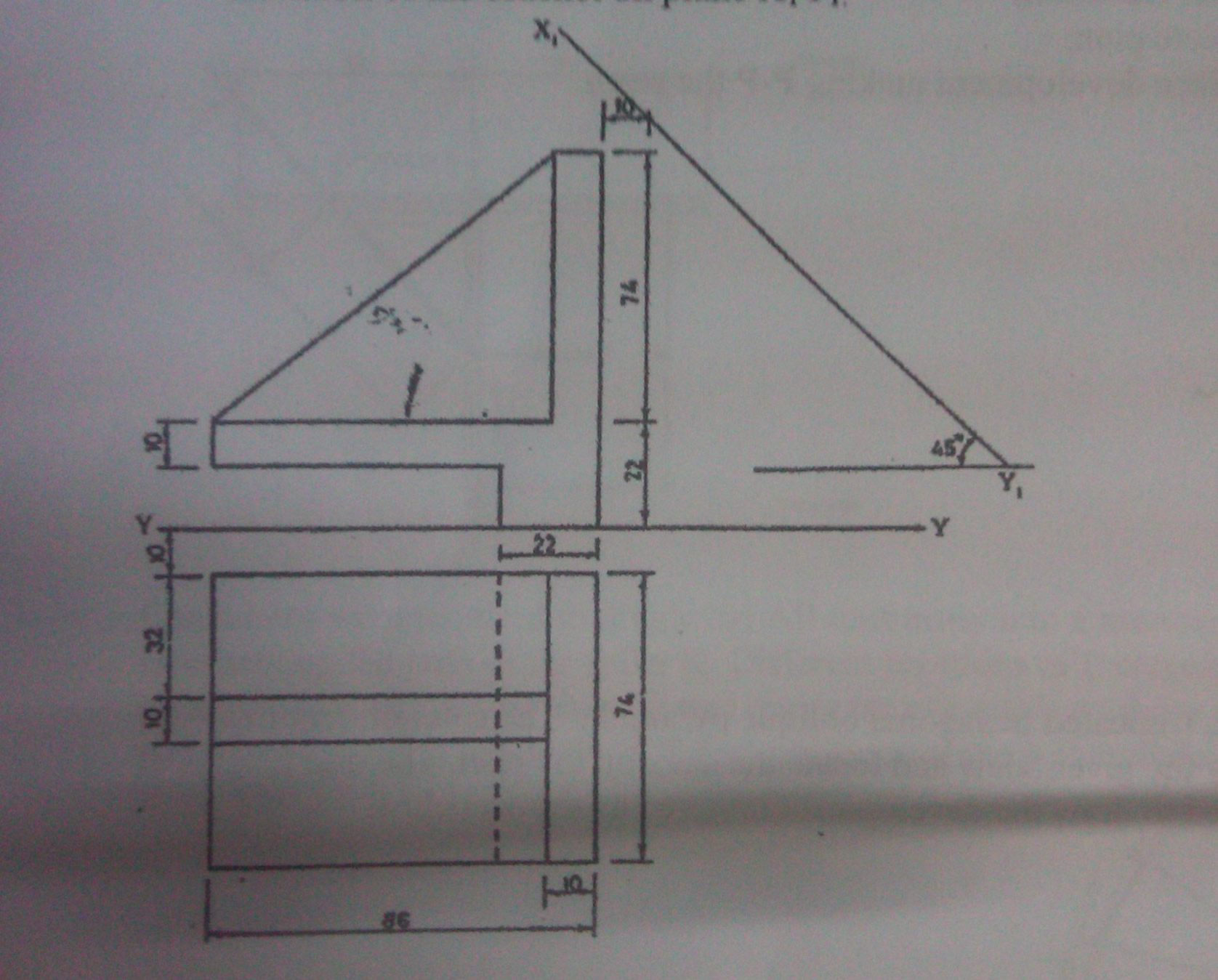

Two views of a bracket are shown in first angle below. Draw the auxiliary elevation of the bracket on plane X1Y1


_____________________________________________________________________________________________________
OBSERVATION

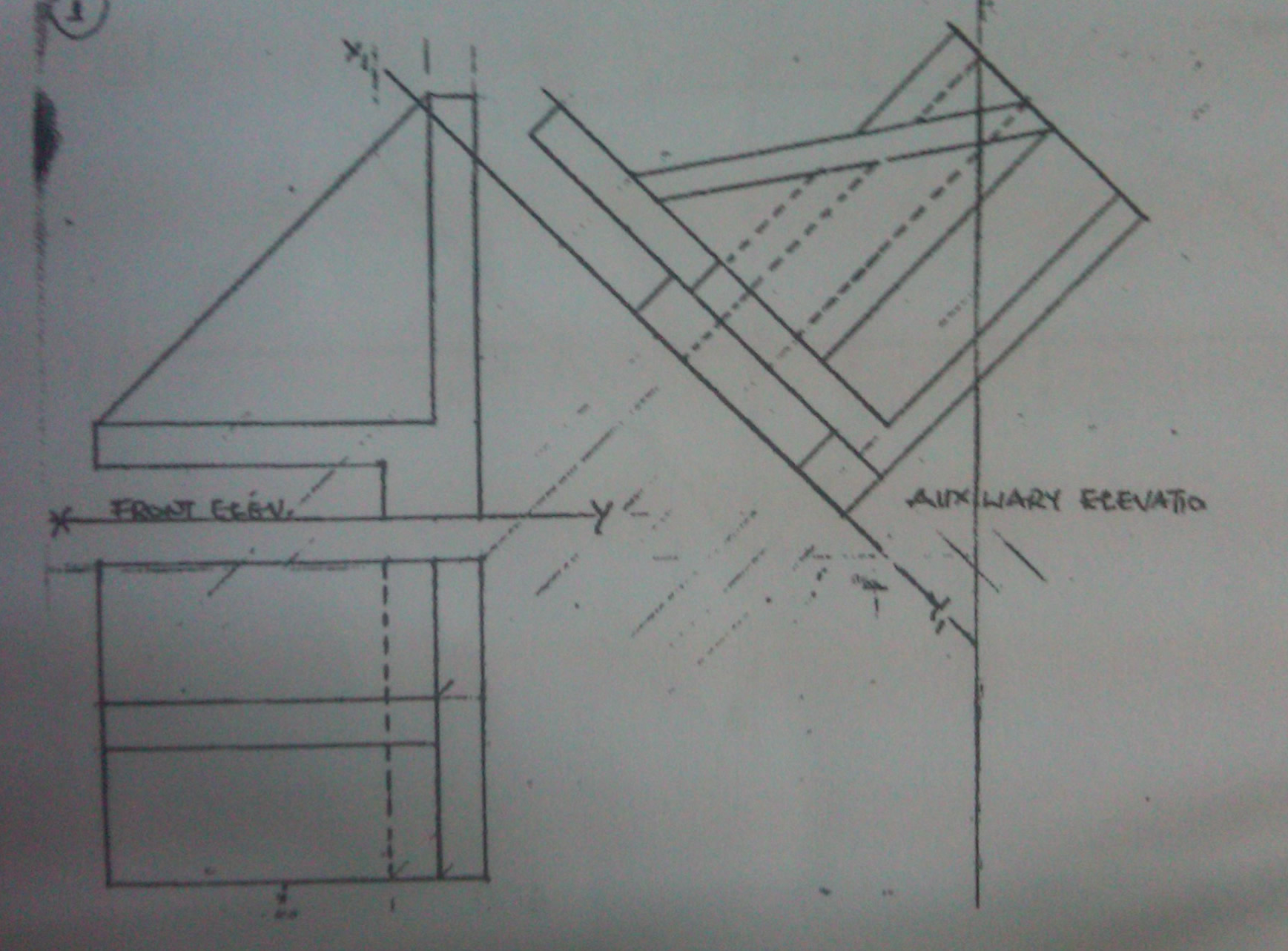

This is a question on auxiliary elevation. It required candidates to project perpendicularly from the plan to the new plane X1 Y1 and take corresponding measurements from the given front elevation. This is a familiar type of question and a good majority did well in the question. The solution is shown below
