Answer one question only from this section either Building or Mechanical Drawing.



_____________________________________________________________________________________________________
Observation

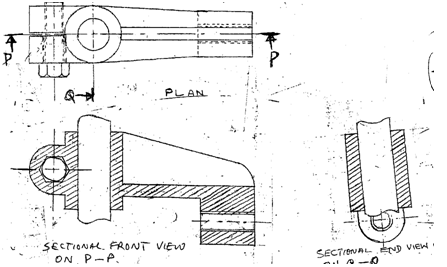

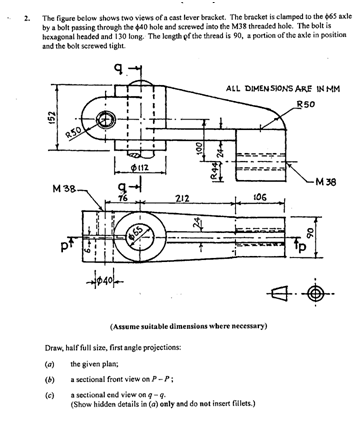

 This is a practical question on Mechanical. Candidates were required to demonstrate  their skill in the use of lines, symbols, scales, dimensions, etc. The most important step is to  visualise the  pictorial view of the block given and make a sketch of it. This will aid the drawing of the required sectional front elevation, end elevation and plan .  Working drawing also required a lot of  calculations and precise location of elements within the  drawing. The required solutions are given below.
