Woodwork Paper 3, Nov/Dec. 2012
Questions: 1 2 3 4 Main
General Comments
Weakness/Remedies
Strength








































Question 4

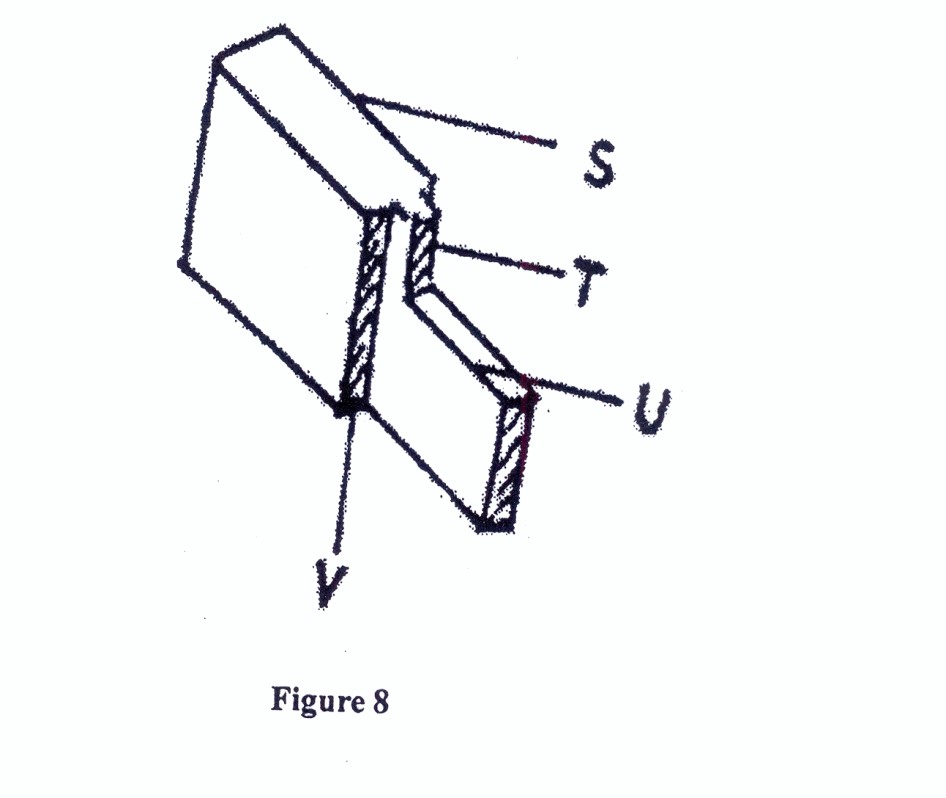

  1. Figure 8 shows the sketch of part of a joint.  Name the parts labelled S, T, U and V.

_____________________________________________________________________________________________________
Observation
  1. State two methods of bending wood.
  1. Calculate the percentage moisture content of a piece of timber which weighed 715 g when wet and 550 g when dry.



  1. List four upholstery tools.
  1. List two wood turning tools.



Most candidates were able to:

-           name the labelled parts;
-           state the methods of bending wood;
-           list the upholstery tools.

However, they were unable to list wood turning tools.

The expected response to question 4 is as given below:

(a)       S          -           aris edge side/face/edge
            T          -           haunch
            U         -           tenon
            V          -           shoulder

(b)       -           Kerfing, lamination

(c)        Percentage moisture content =

                        Wet weight – Dry weight  x 100
                                    Dry weight                  1

            -           Correct substitution
                        715 – 550 x 100 = 165 x 100
                             550            1      550     1

                                                                        =          30%



(d)       -           staple gun
            -           scissors
            -           hammer/tacking hammer
            -           ripping chisel
            -           needle
            -           pin
            -           web stretcher
            -           fabric shears.

(e)       -           gouge
            -           parting tool
            -           skew chisels
            -           callipers (inside/outside)
            -           pair of compasses
            -           pair of dividers
            -           rule
            -           pencil
            -           trysquare
            -           parting tool
            -           round nose chisel
            -           spear point chisel
            -           flat or facing chisel.
