Auto body repair & Spray painting Paper 3 WASSCE (SC), 2017

Question 1



The following materials were supplied:

  1. mild steel sheet metal 320 mm X 300 mm X 18SWG for part A;
  2. mild steel sheet metal 300 mm X 220 mm X 18SWG for part B;
  3. one tie-on label.

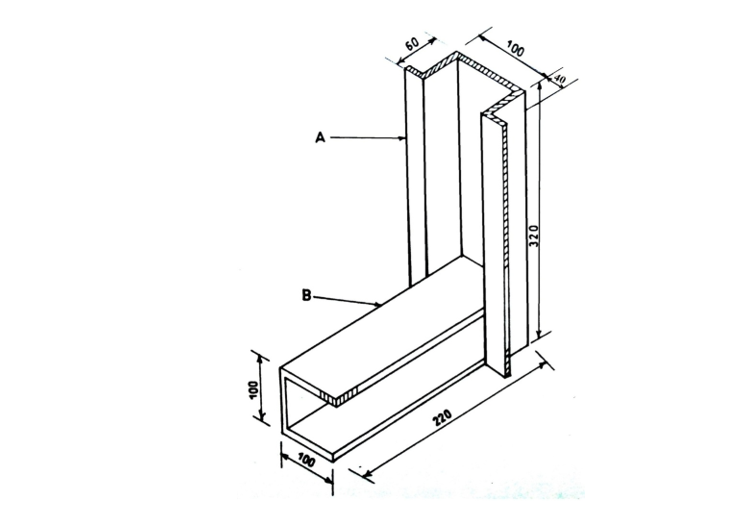

The diagram below shows a top hat pillar attached to a channel body-runner. Use the materials supplied to produce the component.

diag



Observation



Most of the candidates were able to interpret the diagram; hence, did very well.
