Auto body repair & Spray painting Paper 3 WASSCE (SC), 2019

Question 1

The following materials were supplied:


  1. two mild steel sheet 300 mm 260 mm 18SWG for parts A;

  2. two mild steel sheet 300 mm 80 mm 18 SWG for parts B;

  3. rivet pins;

  4. one tie-on label.

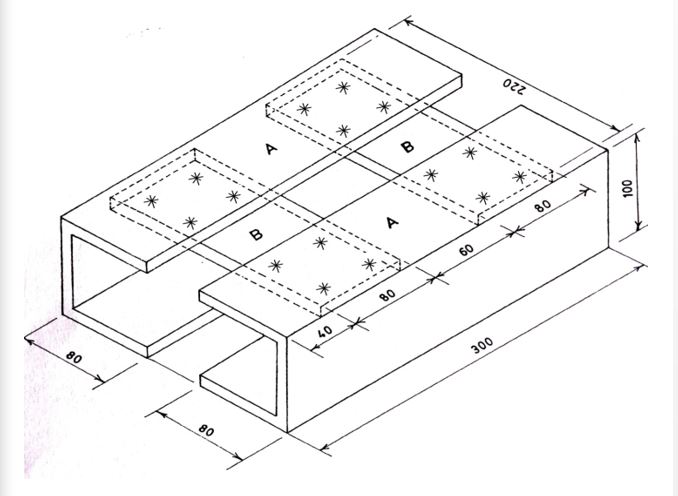

The diagram below shows a chassis frame member supported by two metal     sheets. Use the materials supplied to produce the component.

Observation

While some candidates satisfactorily produced the components, a few others could not take accurate dimensions.
