Auto body repair & Spray painting Paper 3 WASSCE (SC), 2021

Question 1



The following materials were supplied:



  1. one mild steel sheet 400mm* 320mm*18SWG for part A;
  2. two mild steel sheet 260 mm* 150 mm*18 SWG for parts B;
  3. one tie-on label.

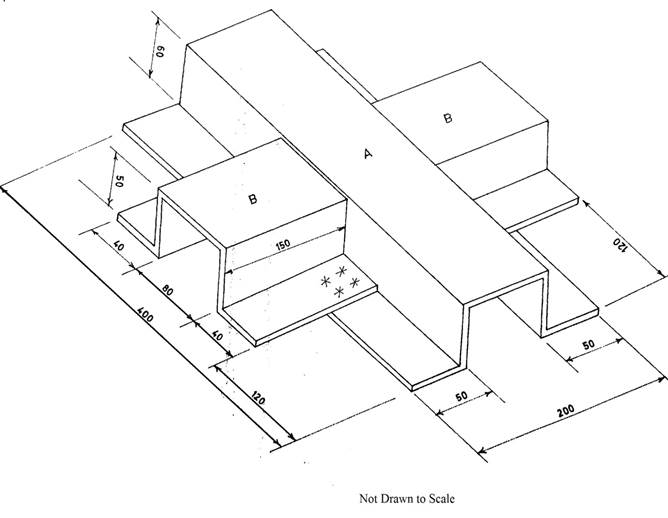

The sketch in fig. 1 shows a fabrication work.
Use the materials supplied to produce the component.



Observation



Most candidates could not produce the component, as required.

.
