Applied Electricity Paper 2 , May/June 2012
Questions:   1 2 3 4 5 6   Main
General Comments
Weakness/Remedies
Strength








Question 6
  1. State two methods of connecting 13 A socket outlets.

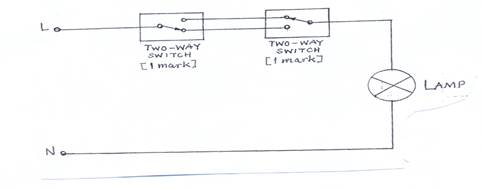

  2. Sketch a wiring diagram of a two-way system controlling a lamp in OFF position.
  3.

_____________________________________________________________________________________________________
Observation

The expected answers were:
          (a)  (i)           Radial connection
                (ii)         Ring connection
          (b)
The question was on Electrical Wiring. This question was unpopular with the candidates. It was reported that the performance of the very few that attempted it was very poor.
