Auto mechanics Paper 2 WASSCE (PC), 2017

Question 5



(a)  Sketch the layout of a hydraulic braking system and label five of
its parts.
(b)  Describe the operation of a hydraulic braking system.



Observation



The Candidates that attempted this question could not satisfactorily answer 5(a). Below is the solution of the poorly answered part of the question.

Solution

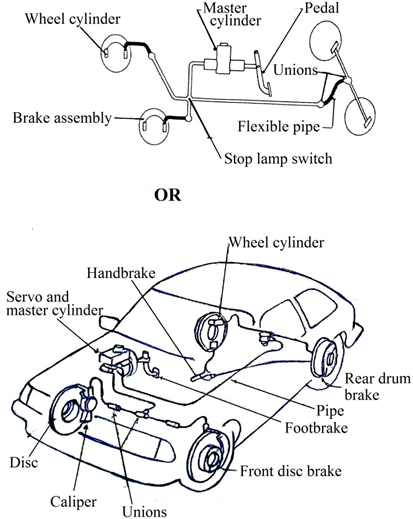

  1. The Layout of Hydraulic Braking System with Labelled Parts
