Block laying Paper 2 WASSCE (SC), 2018

Question 3



    (a)        Sketch the cross-section of a straight-flight stair and label the following parts:

    1. going;
    2. landing;
    3. tread.

    (b)        Differentiate between a partition wall and a party wall.

    (c)        Name a suitable hinge for each of the following types of door:

    1. flush door;
    2. match boarded door;
    3. garage metal door.

    (d)       state one function of a window sill.

Observation



Most candidates were able to state two properties of hardened concrete. However, few Most candidates were able to;
-Name a suitable hinge for each of the following types of door:

  • flush door;
  • match boarded door;
  • garage metal door.
  • state one function of a window sill.


However, some of them failed to:

  • sketch the cross-section of a straight-flight stair and label the following parts:
  • going;
  • landing;
  • tread.
  • differentiate between a partition wall and a party wall.

            The expected response to question 3 is as given below:

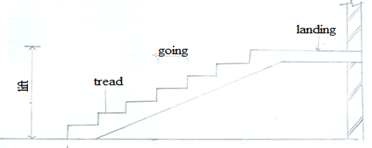

3 (a) Sketch of the cross-section of a straight-flight stair:


(b)        Difference between a partition wall and a party wall
A partition wall is the wall which divides a building into different rooms or apartments while a party wall is the wall which separates two adjoining buildings of two different owners.

 (c)       Suitable hinges for each type of door

  • Flush door: butt hinge, parliament hinge.
  • Matchboarded door:  tee hinge, strap hinge; garnet hinge.
  • Garage metal door: hook and band (or eye) hinge.

(d)       Functions of a window sill:

  • it sheds-off water from the window;
  • it provides attractive finish to the window.
