Building Construction Paper 2, May/June. 2013
Questions:   1 2 3 4 5   Main
General Comments
Strength
Weakness/Remedies













Question 4

(a) State two factors that influence the choice of a roof.

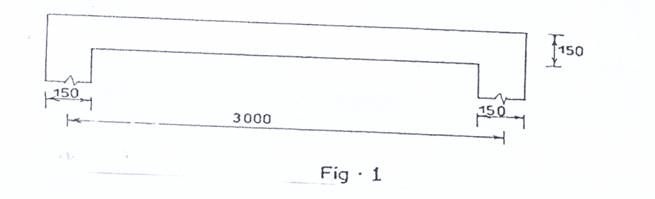

(b) Fig. 1 shows a section through a reinforced concrete slab and supporting beams. Use it to answer the following questions:

(i) Reproduce the sketch and show details of steel reinforcements in the slab and beams.
(ii) Label any four parts.

_____________________________________________________________________________________________________
Observation

Most candidates were able to state the factors that influence the choice of a roof. However, majority of the candidates were unable to:
- reproduce the sketch to show details of steel reinforcement;
- label the parts. The expected response to question 4 is as given below:

4(a) Factors that influence the choice of a roof are:
(a) Span of the building.
(b) Loads on the roof structure.
(c) Weather/climatic conditions.
(d) Type and function of the building.
(e) Location of the building.

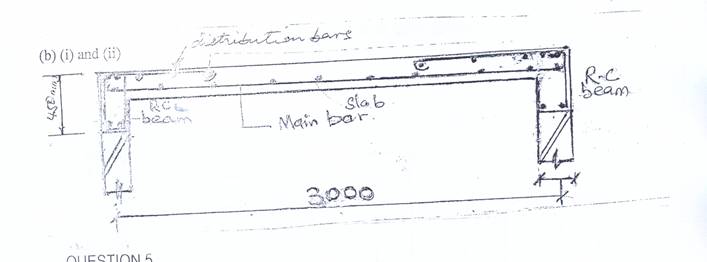

(b)
