building construction Paper 3 WASSCE (PC 2ND), 2020

Question 3



Draw to  a scale of 1:100, the following views of the building:

(a)        front elevation;
(b)        right-side elevation.

Observation





The candidates did well by;

  • showing appropriate locations of the garage door, entrance door and shop door;
  • indicating the drawing scale and title;
  • showing the threshold steps and ramp to the garage door.

However some of  the candidates failed to:

-           show the entrance porch  the semi-circular arches;
-           distinguish the ground level from the floor level;
-           present the correct view of the roof in elevation.

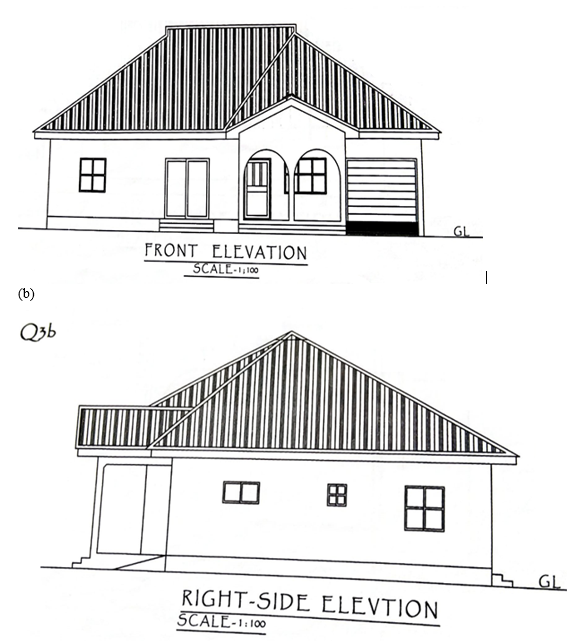

The expected response to question 3 is as given below
