building construction Paper 3 WASSCE (PC 2ND), 2022

Question 3



Draw to  a scale of 1:100, the following views of the building:

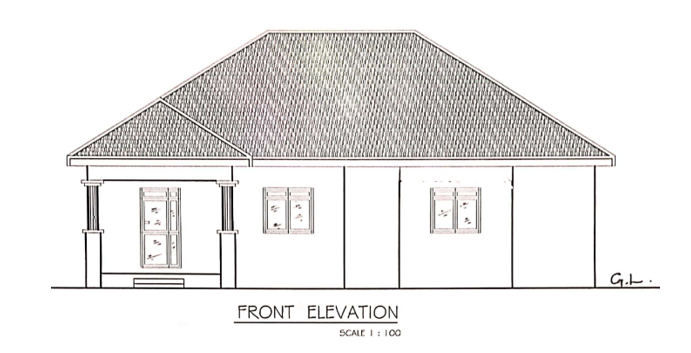

(a)        front elevation;

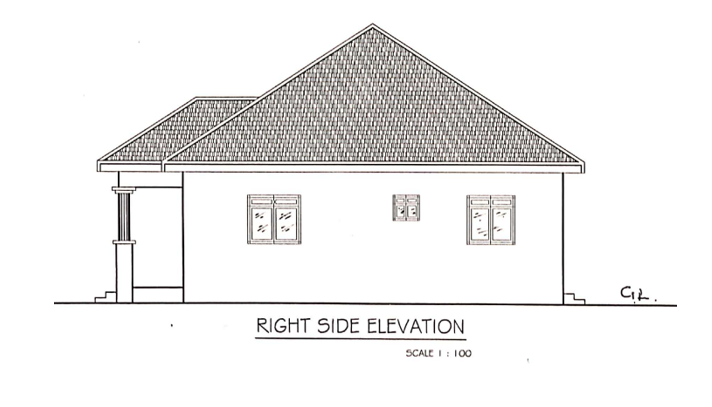

(b)        right-side elevation

The candidates did well by;

  • showing the beams and columns at the entrance porch;
  • drawing the doors and windows in their correct locations.

However majority of  the candidates failed to:
-           draw the correct door and window type;
-           distinguish the ground level from the floor level;
-           hatch the roof covering shown in elevation.

The expected response to question 3 is as given below:
