Elect Installation & Maintenance Work 2, WASSCE (SC), 2022

Question 5

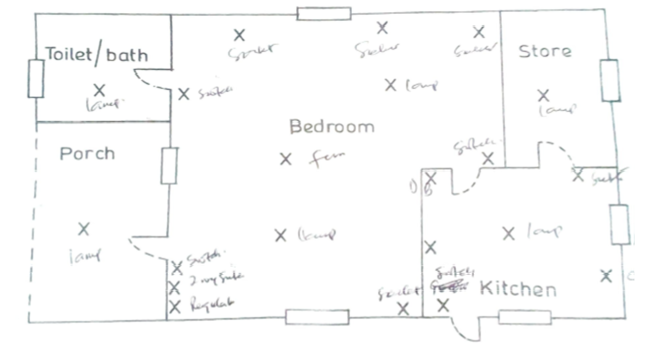

The diagram below illustrates the floor plan of a single bedroom self-contained apartment


(a)          prepare a legend for the following items:
(i)         six lamps;
(ii)        three 1 –way switches;
(iii)       four 2-way switches;
(iv)       five 13 A sockets;
(v)       one ceiling fan;
(vi)       one fan regulator;
(vii)      one distribution board;
(viii)     cooker control unit.
[3 marks]
(b)          In the diagram above where X marks are shown, indicate the correct positions of
the items listed in 5(a).

                                                                                                                                    [22 marks]

Observation



Expected response:
Floor plan of a single bedroom self-contained apartment

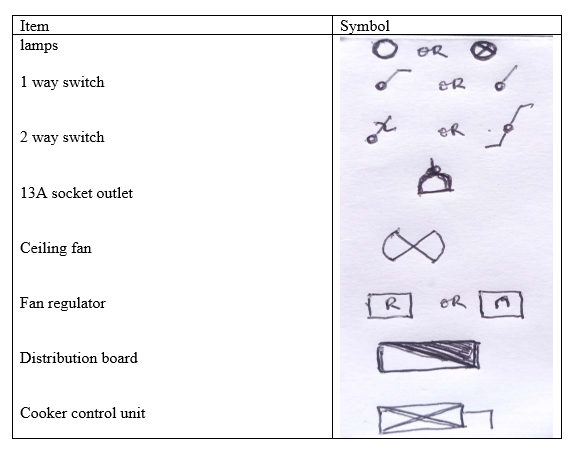

            (a)        Legend

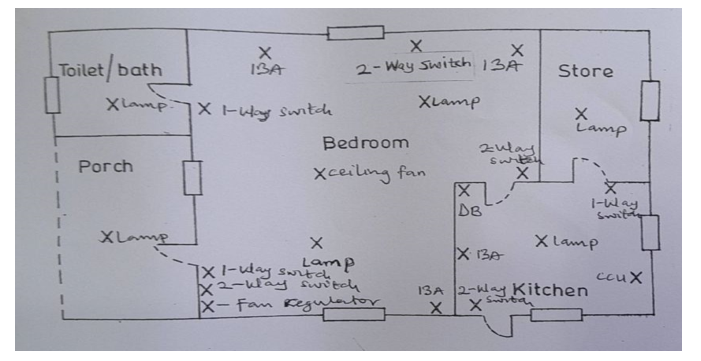

(b)        Correct positioning of the items listed
