Question 9

(a)      Define the term logic gate.
(b)     Show with the aid of combinational logic gates how the following can be derived from a NAND gate:

          (i)      NOT gate;
          (ii)      AND gate;
          (iii)     OR gate.

_____________________________________________________________________________________________________
OBSERVATION


The expected answers were:

(a)      A logic gate is a circuit that has one or more input but only one output signal.

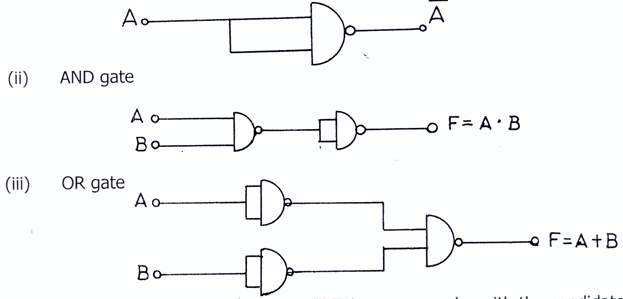

(b)     (i)      NOT gate
   Electronic Image

The question was on Logic gates. The question was popular with the candidates. The performance was fairly good.
