Question 2
  1. State three parameters that determine the performance of a power supply.

(b) List three sources of power supply for electronic circuits.
(c) Draw a Zener diode stabilizing circuit.

          The expected answers were:
 (a)    Three parameters that determine the performance of a power supply
(i)   Voltage regulation factor
             (ii)  Ripple factor
             (iii) Efficiency
            (b)     Any three sources of power supply for electronic circuits
                        (i)  Dry cells
                        (ii) Solar cells
                        (iii)Accumulator
                        (iv)Power packs

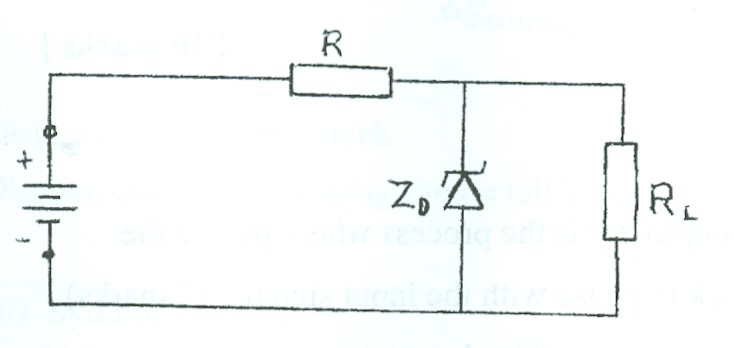

            (c)    Zener diode regulating circuit






_____________________________________________________________________________________________________
OBSERVATION

The question was on Power Supply. The question was very unpopular with the candidates. The performance was below average.
