Basic Electronics Paper 2 WASSCE (PC), 2019

Question 3

A transistor has a common emitter gain (β) of 100. If the base current is 20µA, calculate the:


  1. Collector current;

  2. Emitter current;

  3. Common base current gain (α);

  4. Common collector current gain (γ).




Observation



The Chief Examiner reported that majority of the candidates could not recall the relationship between the various d.c. current flows in a bipolar junction transistor.

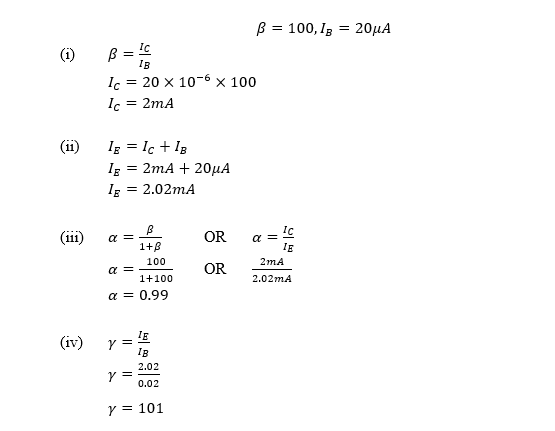

The expected responses were:
