Furniture Making 2, WASSCE (SC), 2023

Question 11

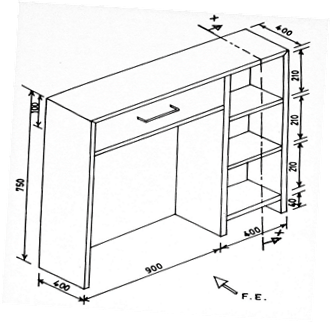

  1. Fig. 2 shows  a student reading table made from 20 mm thick solid wood. The back is covered with a 6 mm thick plywood.
    Fig. 2

(a)        Make a neatpreliminary freehand pictoral sketch of the student reading table.

  1. Using a scale of 1:5, draw in first angle orthogaphic projection, the following views of the cabinet:



  1. front elevation;
  2. sectional end elevation of the cutting plane X – X;
  3. plan with the top removed.



Observation



Most of  the candidates  who attempted this question showed slight improvement in their drawing ability when compared to the previous year.
