Metal Works Paper 1, May/June 2013
Questions: 1 2       Main
General Comments
Strength
Weakness/Remedies














Question 1

TEST A

(1)   The following materials were supplied:

(a)       one flat mild steel plate, 105 mm x 125 mm x 3 mm (2 OFF);
(b)       set screw, M6, (2 OFF);
(c)        one cotton bag, 80 mm x 110 mm;
(d)       two tie-on labels.

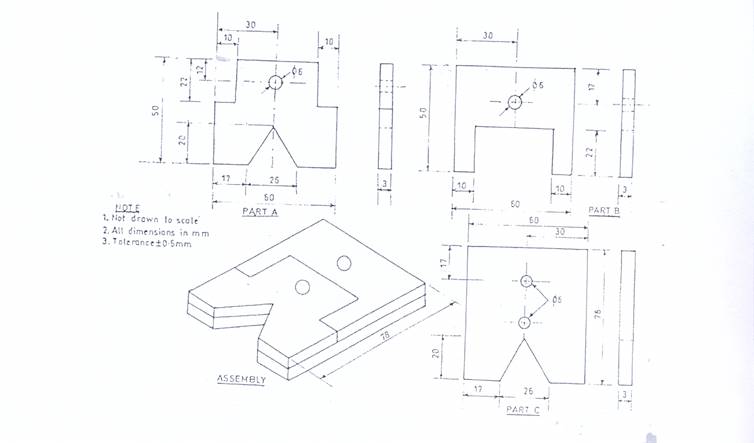

(2)       The diagram below shows the assembly and detailed views of each part of a fitting exercise.  Using the materials supplied, prepare the parts and assemble the pieces.



_____________________________________________________________________________________________________
OBSERVATION

All the candidates attempted this fitting exercise with good performance.
However, some of the candidates could not drill their workpiece.
