Question 1
Candidates were to answer four questions only.
(a)State the reason why chiseling is directed away from other workers.

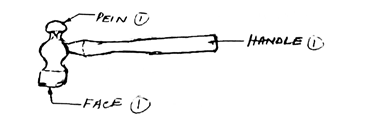

(b) (i) Sketch a ball pein hammer.
(ii) Label two parts of the hammer sketched in 1(b)(i) on the diagram.\
(c)State two workshop tests used to check the hardness of cast iron.
(d) State one function of each of the following used in welding:
(i) hand shield;
(ii) chipping hammer.
Observation
Candidates’ performance was satisfactory. However, questions 1(c) was not adequately answered.
Its solution is as follows:
(a) Stating the reason why chiseling is directed away from other workers:
- chipping is always done in a direction which will prevent flying of chips
from striking other workers.
- to prevent accident
- to prevent other workers from being injured by flying chips
(c) Stating two workshop tests used to check the hardness of cast iron:
- Dropping test
- Grinding test
- Filling test
(d) (i) Stating one function of hand shield used in welding:
- To protect the face of a worker from hot sparks
- To protect the eyes of a worker from intense rays
(ii) Stating one function of chipping hammer used in welding:
- To remove excess flux/slag
- To clean the bead of welded joint
- For breaking scales formed after welding
