Question 1



1.         The following materials are supplied:
(a)       one flat mild steel plate, 105mm x 115mm x 3mm for parts A and B;
(b)       one flat mild steel plate, 105mm x 85mm x 3mm for part C;
(c)        Æ6mm mild steel rod x 6mm (2 off);
(d)       one cotton bag, 120mm x 150mm to enclose the finished work;
(e)       two tie-on labels.

Observation

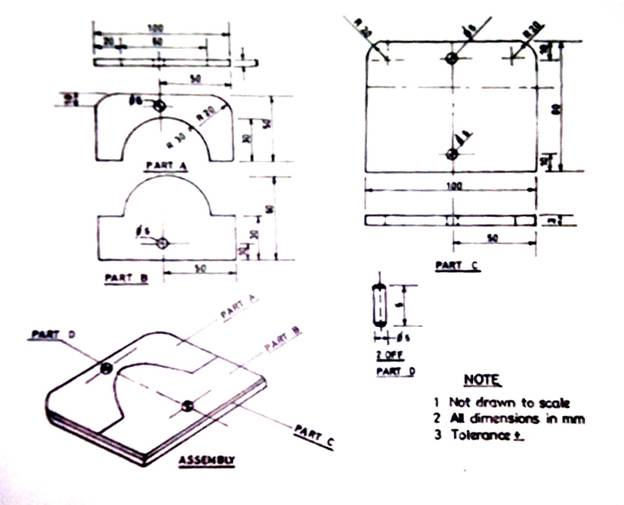

The diagram below shows the assembly and detailed views of each part of a fitting exercise.

Using the materials supplied, prepare the parts and assemble the pieces.


This is the only question attempted by the candidates. Most of them had poorly finished jobs.
