Question 2

The following materials are supplied:
(a)        one piece free cutting mild steel rod, Æ50 mm x 120 mm;
(b)        one cotton bag 120 mm x 120mm to enclose the finished work;
(c)        two tie-on labels.

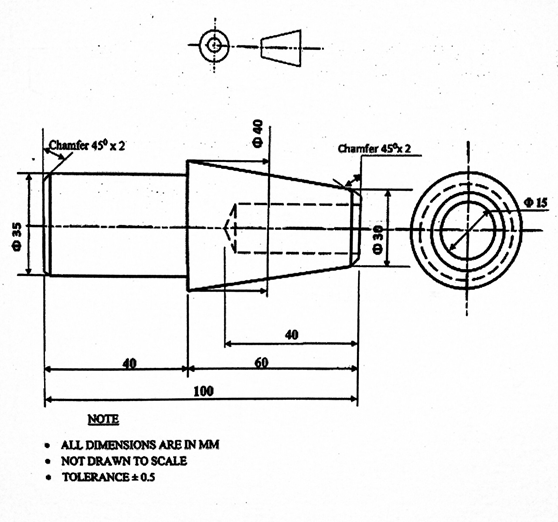

The diagram below shows the detailed view of a machine part. Produce the part using the material supplied.
