Metal Works 3, WASSCE (PC 2ND), 2018

Question 2



The following materials are supplied:


(a) one piece free cutting mild steel rod, Æ50 mm x 60 mm;
(b) one cotton bag 100mm x 80mm to enclose the finished work;
(c) two tie-on labels.

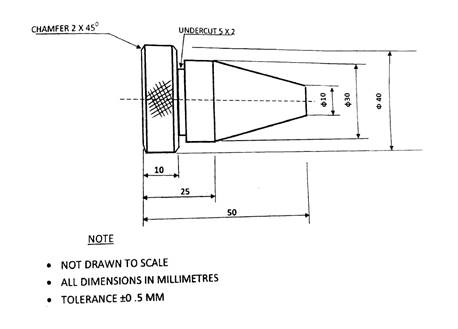

The diagram below shows the detailed view of a machine part. Produce the part using the material supplied.










Observation



Only one candidate attempted this question.
