Question 2
1. The following materials were supplied:
(a) One flat mild steel plate, 110 mm × 110 mm × 3mm;
(b) One cotton bag, 120 mm ×100mm;
(c) Two tie-on labels.

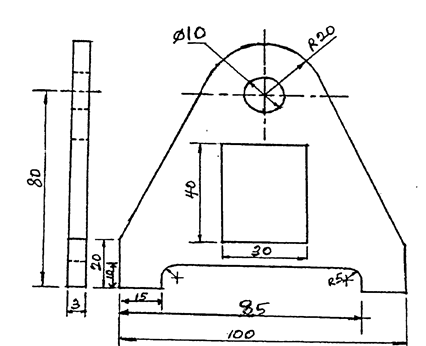

The diagram below shows the detailed views of parts of a fitting exercise.
Using the materials supplied, prepare the part.
Observation
NOTE
1. N
ot drawn to scale;
2. All dimension in mm
3. Tolerance ± 0.1
This fitting exercise was attempted by all the candidates who sat for the examination.
Their performance was highly encouraging as majority of the candidates were able to cut and file the workpiece to size.
