Metal Works 3, WASSCE (SC), 2020

Question 1



The following materials were supplied:

(a) one flat mild steel plate, 105 mm x 55 mm x 3mm (2 off);
(b) one cotton bag, 120mm x 120mm;
(c) two tie-on labels.

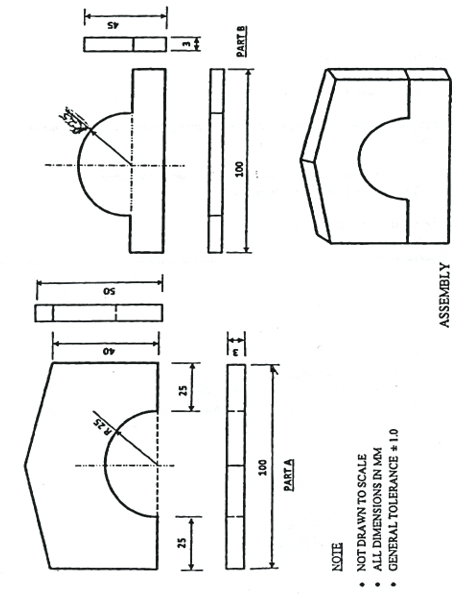

The diagram below shows the assembly and detailed views of each of a fitting exercise. Using the materials supplied, prepare the parts and assemble the pieces.





Observation



All the candidates attempted this question with good performance.
