Physics (Essay) Paper 2 WASSCE (PC), 2020

Question 7

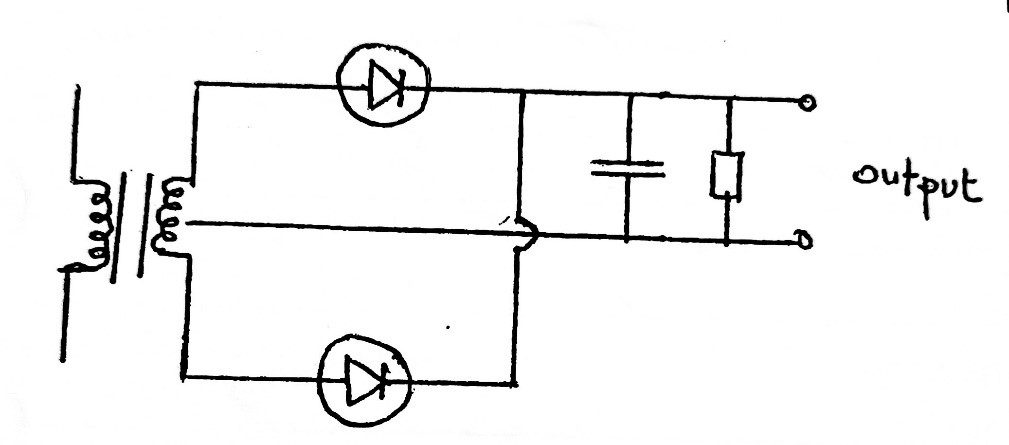

Draw the output for the circuit diagram illustrated above.



Observation



Candidates performance was poor. Most candidates either had incorrect idea or no idea at all about the output wave form for the circuit diagram. Rectification should be treated better in schools. Also, schools should be encouraged to own oscilloscopes. Performance was low



The expected answer is

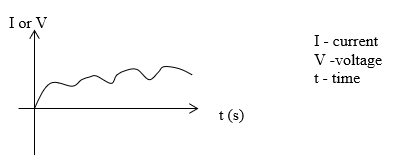

Diagram of output waveform of circuit diagram
