Plumbing and Pipe Fitting 2, May/June 2015

Question 3

3) (a) Sketch the sectional view of an inspection chamber.

(b) Sketch water supply layout in a building and label the following parts:

i. sink;

ii. bath;

iii. basin;

iv. storage cistern;

v. water closet;

vi. hot water cylinder.

Observation

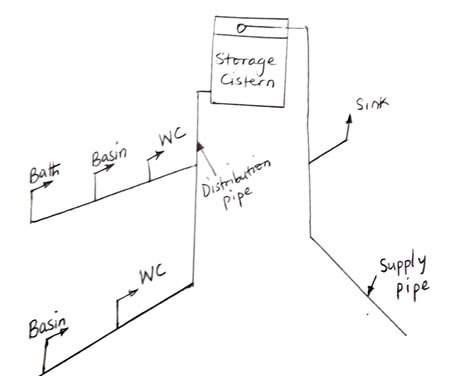

Most of the candidates could not correctly sketch a water supply layout in a building. The required response to 3(b) is given below.
