Question 1

The following materials were provided for this exercise:



(a)       25 mm pressure pipe                                               -           1 length;
(b)       25 mm x 19 mm reducing socket PVC       -           1 no;
(c)        19 mm BSS 1010 brass  bib tap                 -           1 no;
(d)       25 mm union connector                               -           1 no;
(e)       25 mm pressure elbows                              -           4 nos;
(f)         25 mm PVC tee                                             -           1 no;
(g)       small tin of adhesive paste                          -           1no.

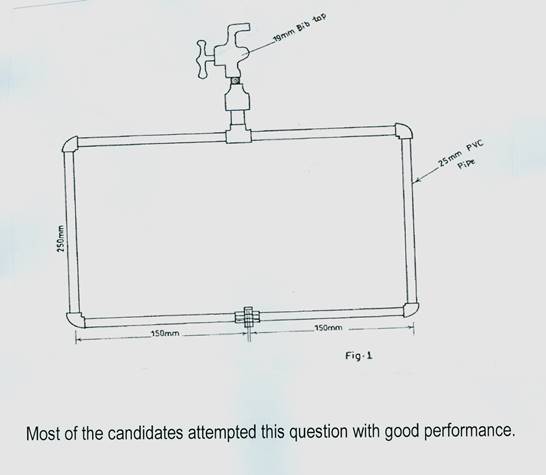

Using a push-fit pipe jointing technique, cut and fix a length of 25 mm PVC pipe as shown in fig.1.





_____________________________________________________________________________________________________

Observation
