Question 3.

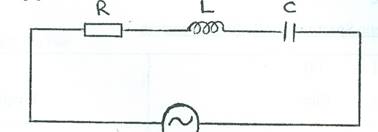

  1. List five classes of electromagnetic spectrum with respect to radio wave propagation.
  2. State the frequency band for each of the classes listed in 3(a)Works workshop.
  3.   For a series RLC circuit, derive an expression for its resonant frequency.

Observation

The expected answers were:
Electromagnetic Spectrum for Radio Propagation


(a)
Class

(b)
Frequency band



Low frequency LF



30kHz – 300kHz



Medium Frequency MF



300kHz - 3MHz



High Frequency HF



3MHz – 30MHz



Very High Frequency VHF



30MHz – 300MHz



Ultra High Frequency UHF



300MHz – 3GHz



Super High Frequency SHF



3GHz – 30GHz



Extra High Frequency EHF



30GHz – 300GHz



  1.


at resonance,
By definition;

then,



The question was on Electronic Communication System. It was poorly answered by candidates.
