Radio,Television And Electronic Paper 2, WASSCE (SC), 2016

Question 3.

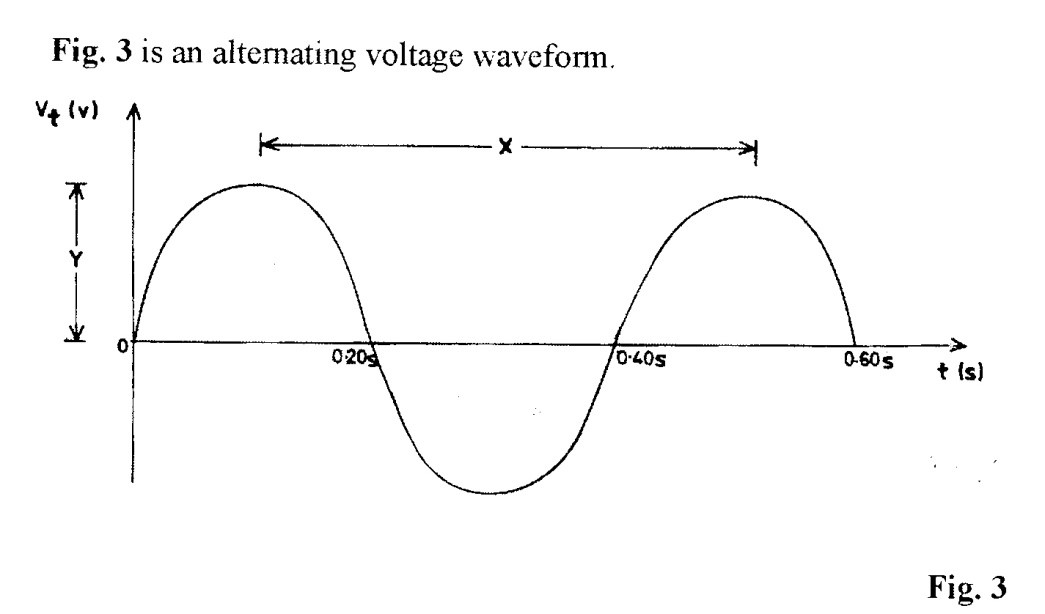

(a)

  • (i)Name the parts labeled X and Y.
  • (ii)Determine the frequency of the waveform.

(b)An alternating voltage has a peak value of 4.0kV. Calculate its:

  • (i)average value;
  • (ii)r.m.s value.

(c)

(ii) Copy and complete Table 1 by marking with a tick “√” the mode of fault indication for each equipment. The first one has been done for you.

(i)List any three electronic measuring instruments.

Fault finding equipment

Visual indication

Audio indication

Tester





Logic probe





TV analyzer





Signal tracer





Oscilloscope







Observation

The expected answers were:

  1. (i) X – Period;
    Y – Amplitude

(b) Using the Kirchhoff’s Current Law:

(i)Vavg = 0.637Vpeak

    = 0.637 x 4000

    = 2,548V.

(ii)

(c)

(i) Electronic measuring instruments

• Ammeter

• Ohmmeter

• Voltmeter

• Multimeter

• Oscilloscope

(ii) Fault finding equipment and mode of fault indication


Fault finding equipment

Visual indication

Audio indication

Logic probe



Signal tracer





TV analyzer





Oscilloscope





Many candidates did not show an understanding of the relationship between Vpeak, Vavg and Vr.m.s. . More so, candidates did not show good understanding of the mode of fault indication of fault finding equipment.
