Technical Drawing Paper 1,Nov/Dec. 2009
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies









Question 1

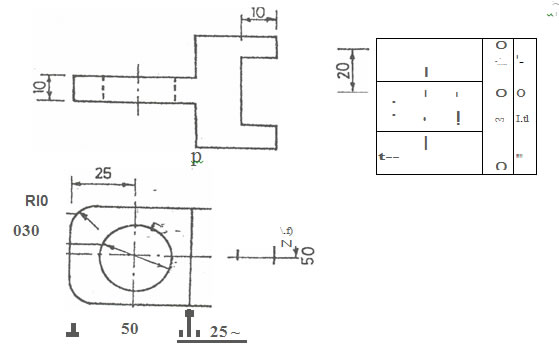

The figure below shows three views of a casting. Draw the isometric view of the casting, making P the lowest point.

_____________________________________________________________________________________________________
OBSERVATION

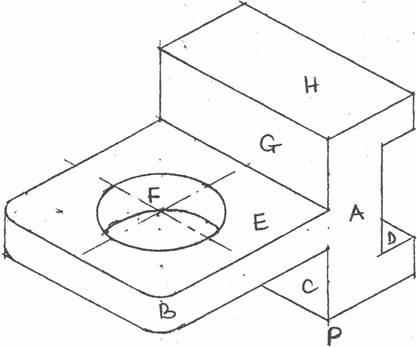

The question required the candidates to draw a given casting from the given orthographic views. They were expected to either draw isometric axes or a box whose sides are equal to the three principal dimensions of the block.The required solution is given below. Most candidates got it correctly by starting from the required lowest point
