Technical Drawing Paper 1,Nov/Dec. 2011
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies

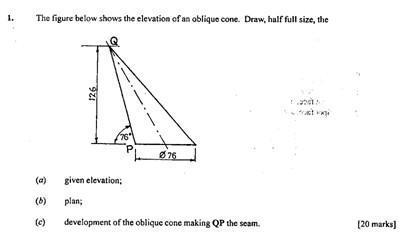

Question 1



_____________________________________________________________________________________________________
OBSERVATION

 Candidates were expected to:
 Copy the given elevation;
      Project downward to complete the plan;
      Divide the circle into 8 or 12 equal parts;

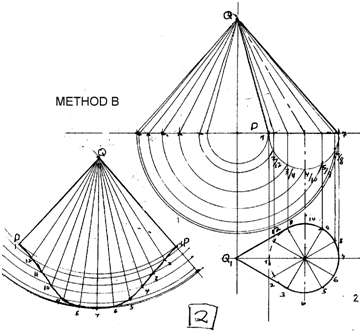

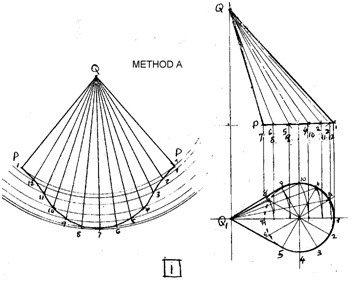

Any of the  methods A or B below will give a satisfactory solution.
