Technical Drawing Paper 1,Nov/Dec. 2011
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies

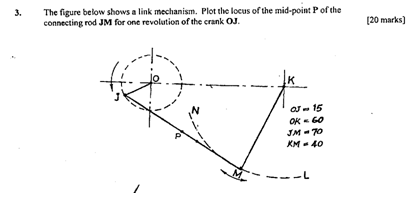

Question 3







_____________________________________________________________________________________________________
OBSERVATION

Candidates were required to:

  1. draw the given mechanism;
  2. divide the circle into 8 or 12 equal parts;
  3. draw arc NL with K as centre;
  4. draw different positions of link KM;
  5. draw different position of rod JM;
  6. locate different positions of P;

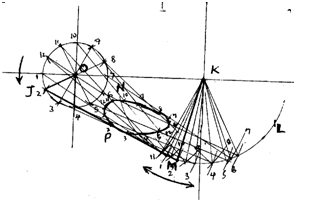

  7. join the points into smooth curve as shown below
