Technical Drawing Paper 1,Nov/Dec. 2012
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies









Question 3

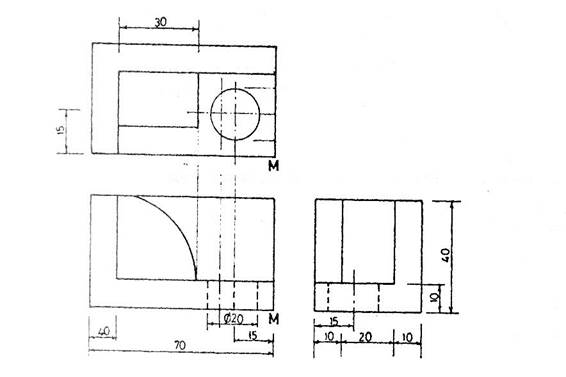

The orthographic views of a block are shown below.  Draw, full size, the block `        in isometric, making point M the lowest.




_____________________________________________________________________________________________________
OBSERVATION

Candidates were expected to:

  1. know the difference between isometric and oblique projection;
  2. have knowledge of isometric axes/principles, isometric box and the lowest point in a block;
  3. use isometric axes;
  4. make M the lowest point;
  5. use isometric box (70 x 50 x 40)
  6. draw every possible faces.

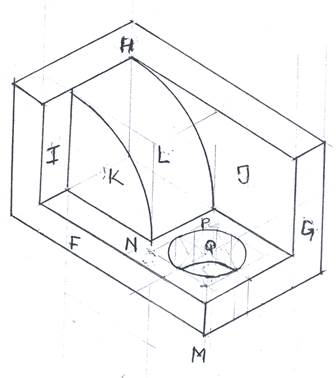

The solution is shown below
