Technical Drawing 2, WASSCE (SC), 2018

Question 4





Observation

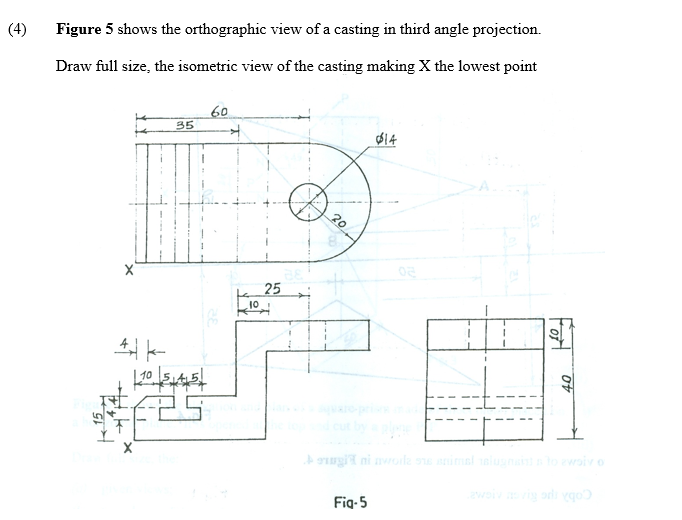

This is a question on converting an object drawn in orthographic projection to isometric drawing while maintaining a particular lowest point. The drawing also require drawing an isometric circle.

It was a well attempted question and many of the candidates performed well.



Candidates were expected to do the following:

(i)use isometric axes;

(ii)make X the lowest point;

(iii)draw the correct isometric box  of the required length, width, height;

(iv)draw face   A;

(v)draw face   B;

(vi)draw face   C (slot with depth);

(vii)      draw face   D (bevel);
(viii)     draw face   E;
(ix)       draw face   F;
(x)        draw face   H;
(xi)       draw face   I;
(xii)      draw face   J (with depth);
(xiii)     draw face   K;
(xiv)     draw neatly.

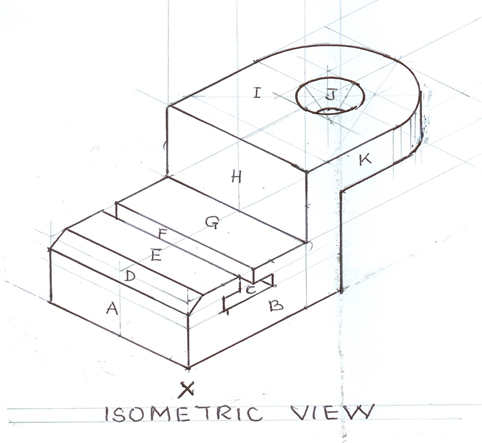

The solution is show below:
