Technical Drawing Paper 3, May/June. 2014
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 2 SECTION A (PART 1)

   Make a neat freehand sketch of the pictorial view of a spade.Make a neat freehand sketch of the pictorial view of a spade.


Observation

Candidates were expected to :

  1. sketch the pictorial view of a spade;
  2. draw for resemblance;
  3. draw for proportionality;
  4. draw the blade and thickness;
  5. draw the stem;
  6. draw the handle;
draw neatly

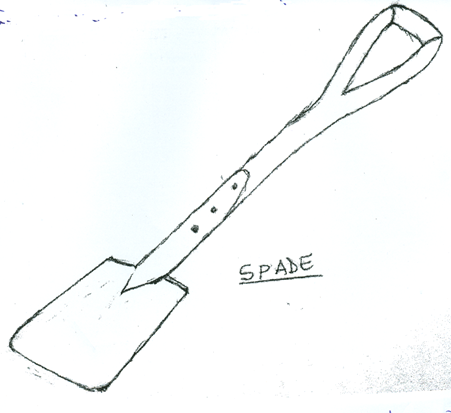

The solution is shown below:
