Technical Drawing Paper 3, May/June. 2014
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 3 SECTION A (PART 1)



Make a neat freehand sketch of the pictorial view of a double open ended spanner.


Observation

Candidates were expected to:

  1. Candidates were expected to:

    1. sketch the pictorial view of a spanner;
    2. draw for resemblance;
    3. draw for proportionality;
    4. draw the head A;
    5. draw the head B;
    6. draw the handle C;
    7. show the thickness;
    8. draw neatly.

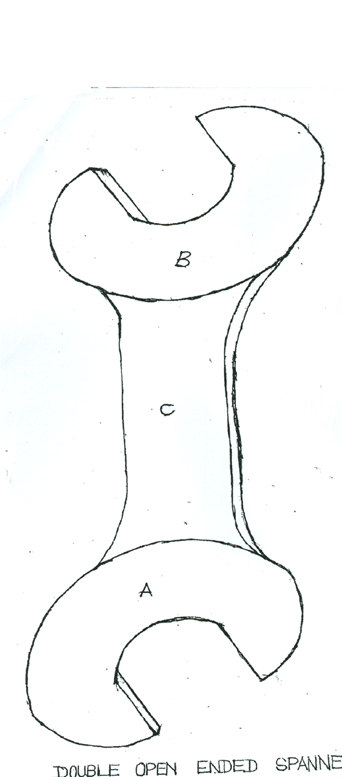

The solution is shown below:
