Observation

Candidates were expected to do the following:

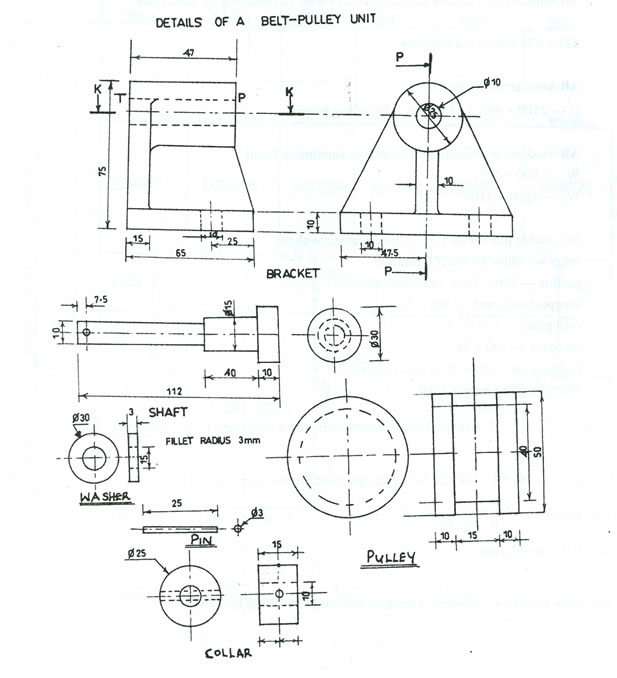

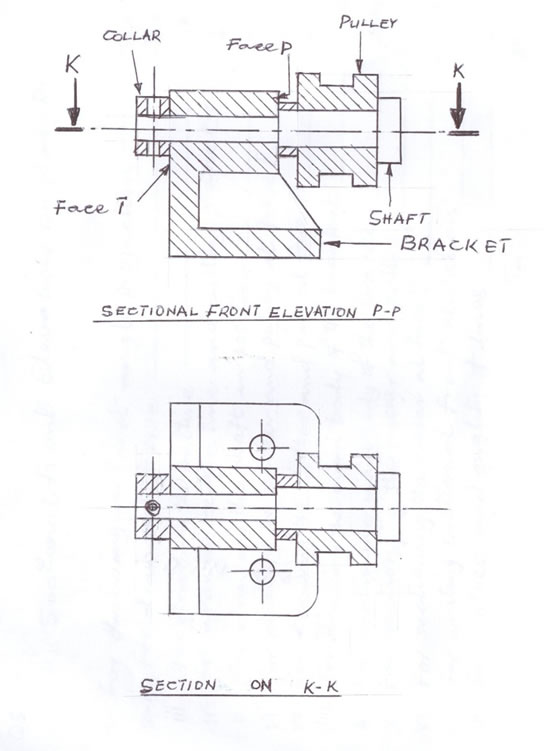

(A) Sectional front elevation on plane P - P

1. draw in first angle projection;
2. draw full size;
3. draw the outline;
4. draw centre line and cutting plane P – P;
5. draw the shaft in position;
6. draw washer and pulley at face P;
7. draw the collar and pin at face T;
8. draw the main body of the bracket;
9. section main body of the bracket;
10. section the washer and pulley;
11. section the collar at face T;
12. draw neatly

(B) Section on plane K - K

1. draw in first angle projection;
2. draw full size;
3. draw the outline;
4. draw six  (6) centre;
5. draw the bracket;
6. draw the shaft in position;
7. draw washer and pulley at face P;
8. draw the collar and pin at face T;
9. draw the two (2) holes in the bracket;
10. section the bracket;
11. section the washer and pulley at face P;
12. section the collar at face T;
13. write section on K- K;
14. draw neatly.
