Question 2
- Make a freehand pictorial sketch of a builders square.
Observation
Candidates were required to make a freehand pictorial sketch of builders square. Most of the candidates that attempted this question performed above average but some did not show the thickness of the tool.
Candidates were expected to do the following:
(i) draw the tool showing the thickness;
- draw for resemblance;
- draw to proportion;
- draw the blade (A);
- draw the stock (B);
- show the calibrations;
- draw neatly;
.

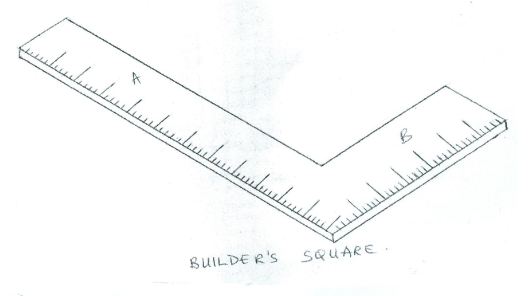

The solution is shown below:
